| Model Name |
CYBERCOREII1300P-BKCAU |
| Total Output Power |
1300 W |
| Dimensions (L × W × H) |
160 × 150 × 86 mm |
| ATX Version |
ATX 3.1 |
| Cybenetics Rating |
PLATINUM |
| 80 PLUS Rating |
PLATINUM |
| PFC |
> 0.99 |

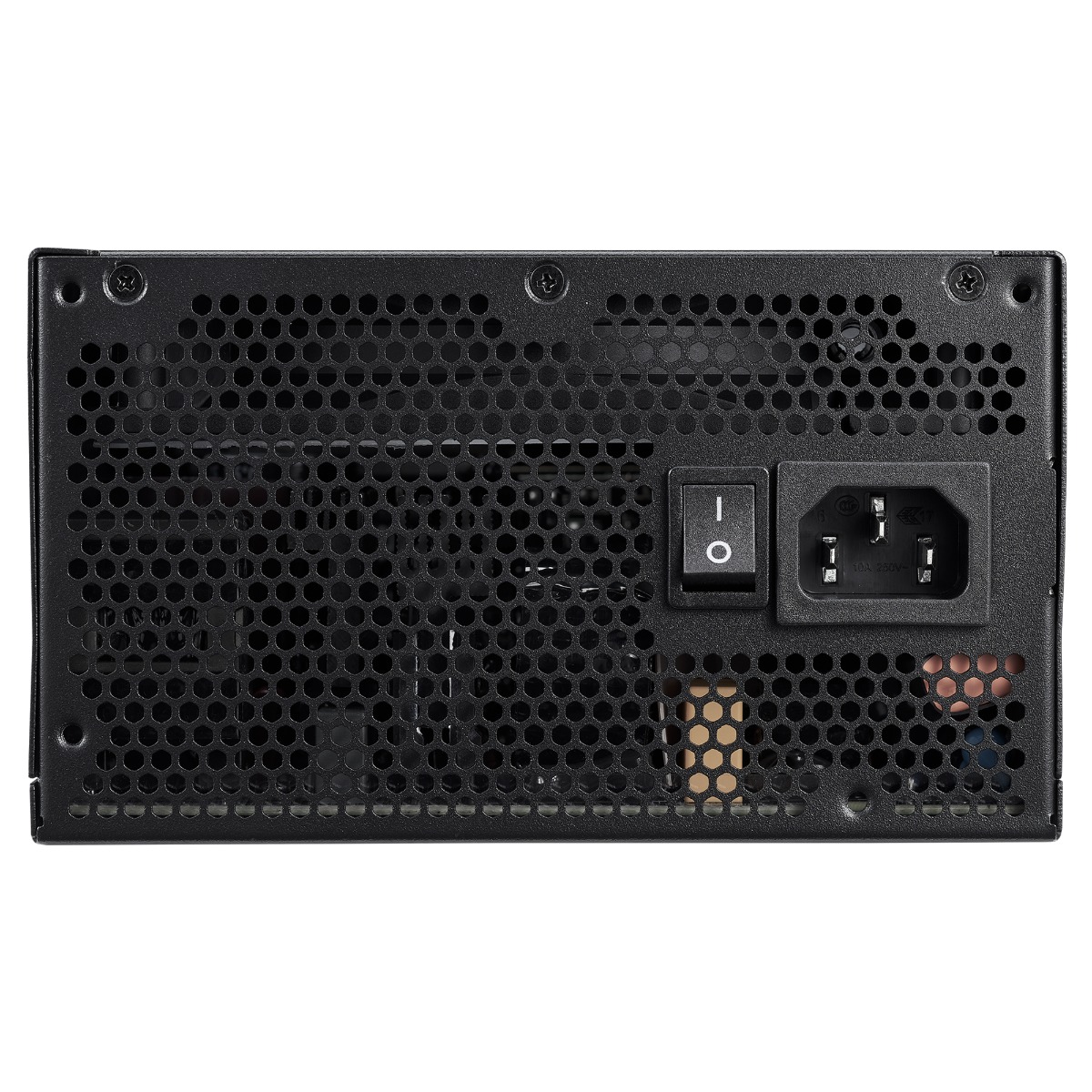

| Input Voltage |
100–240 V |
| Input Current |
15 A |
| Input Frequency |
50–60 Hz |
| DC Output Voltage |
+5V / +3.3V / +12V / −12V / +5Vsb |
| Power Excursion |
2600 W (up to 235% of rated power for 100 μs) |
| Operating Temperature |
50 °C |

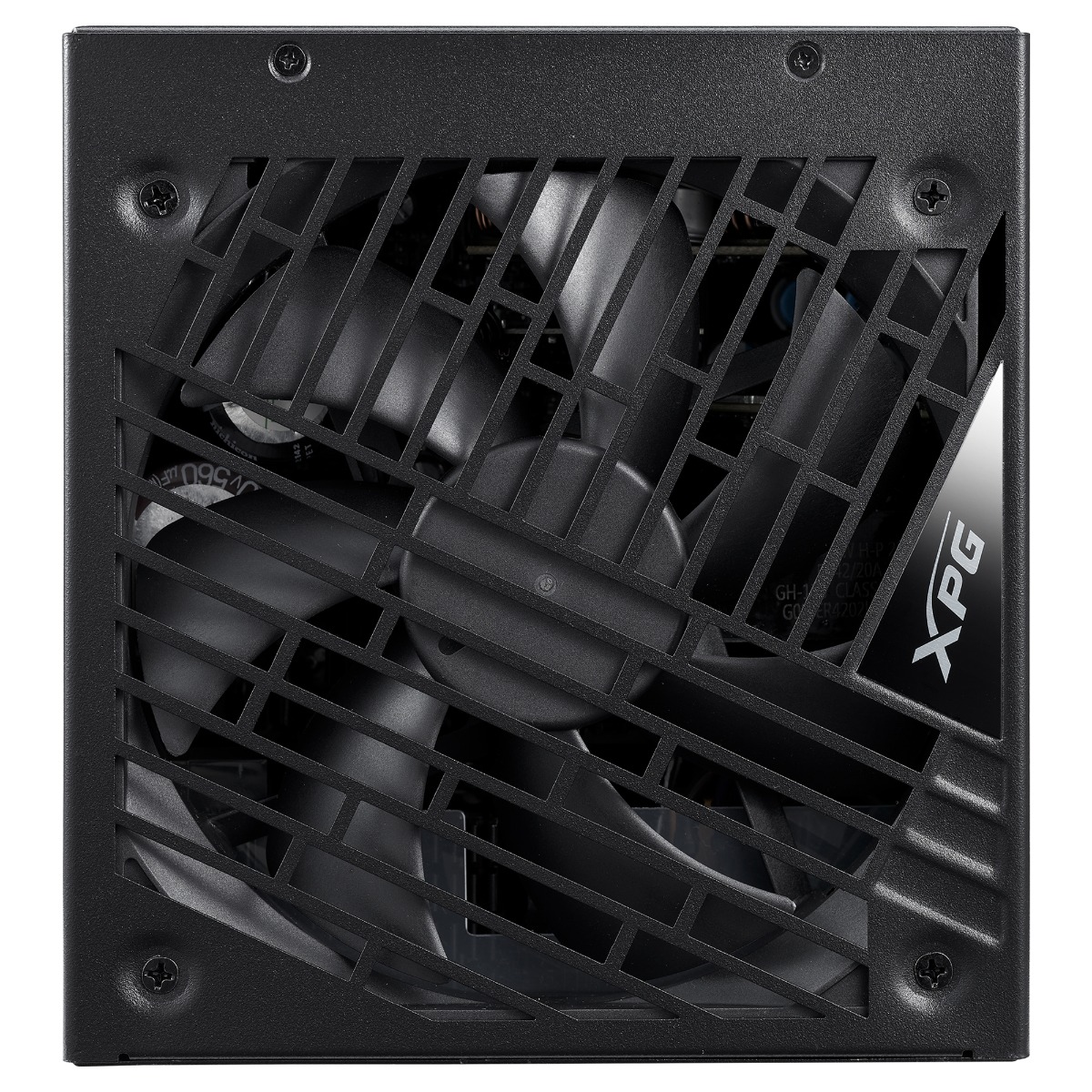

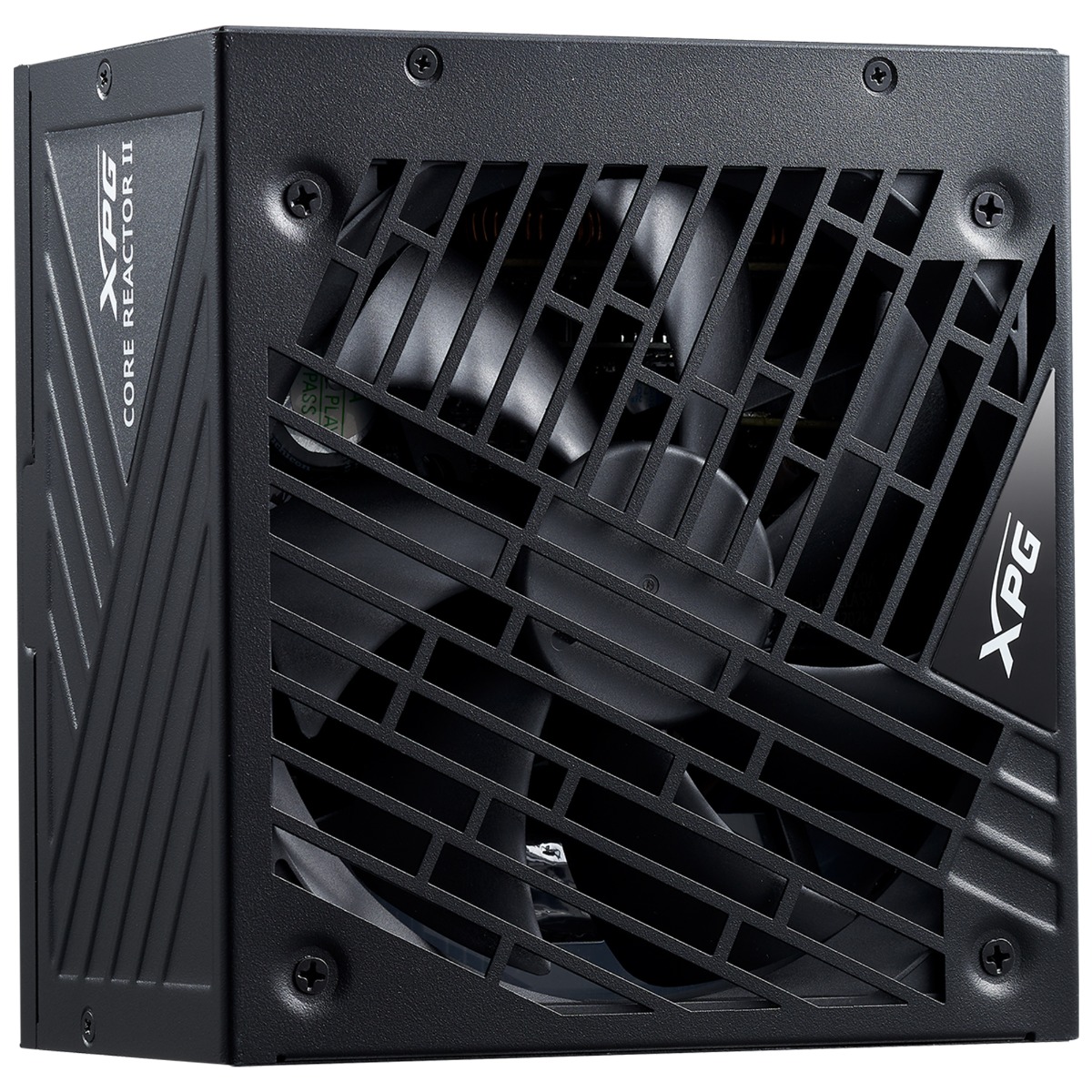

| Fan Size |
120 mm |
| Fan Bearing |
Double Ball Bearing |
| Fan Speed |
2,150 RPM |
| MTBF |
125,000 hours @ 25 °C |
| Protections |
OCP · OVP · OPP · OTP · UVP · SCP · NLO · SIP |
| Certifications |
CE · CB · FCC(IC) · TUV · cTUVus · TUV S-Mark · NOM · BSMI · UKCA · EAC · CCC · RCM |

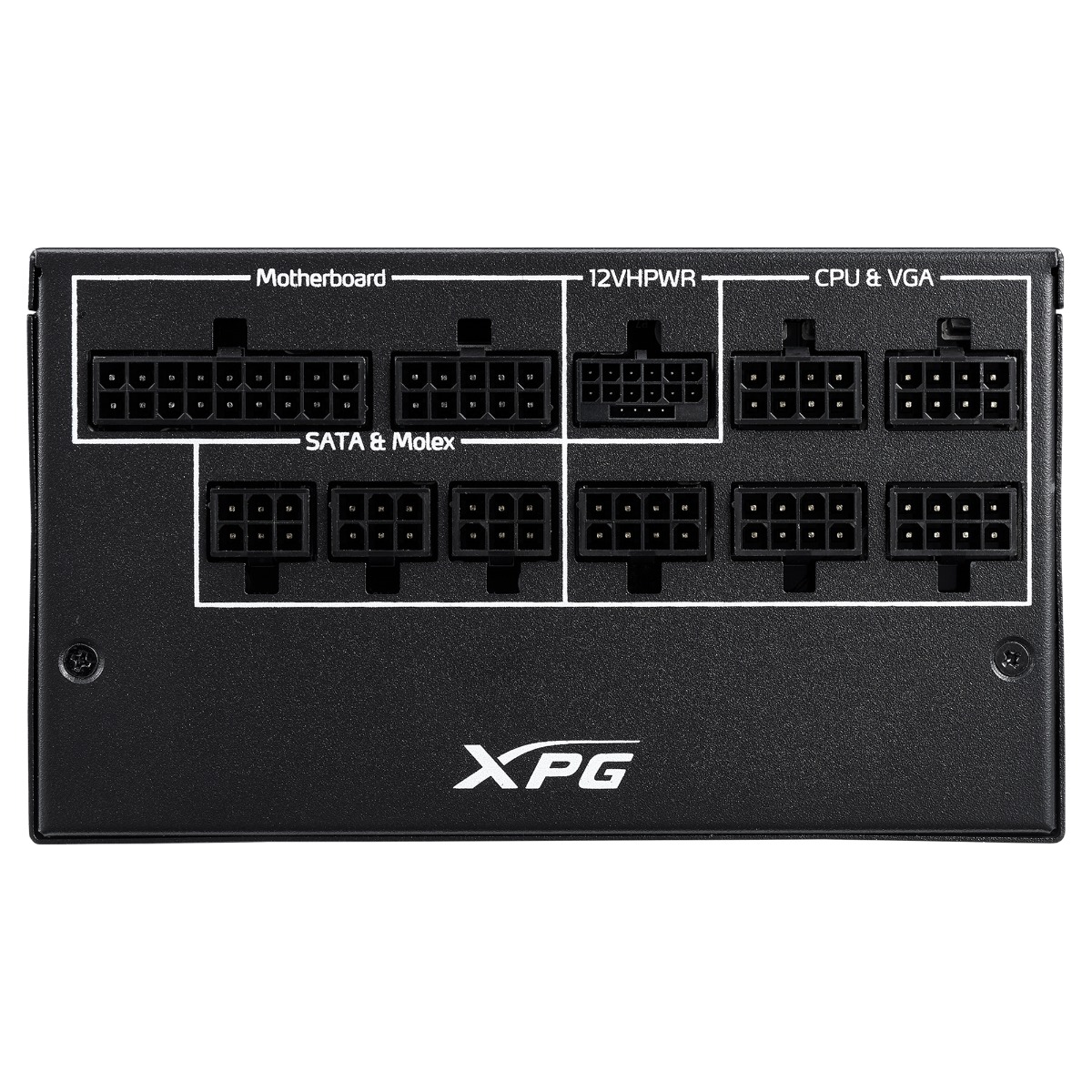

| ATX 24-Pin Connector |
1 |
| EPS 8-Pin Connector |
2 |
| PCI-E 6+2-Pin Connector |
10 |
| Molex 4-Pin Connector |
8 |
| Floppy 4-Pin Connector |
2 |
| 12V-2×6 / 12VHPWR (12+4, 600W) |
1 |
| Weight (Product + Cables) |
2.0 kg + 1.94 kg (4.4 lb + 4.2 lb) ±5% |
| Weight (With Package) |
4.6 kg (10.1 lb) ±5% |
| Warranty |
10 Years |
